Heavy Duty Pipe Clamps without EPDM rubber Lining M8 , 2 sides screws(two sides closed), stainless steel 304

Basic Info:

Model NO: 12 160 xxx

Share to :

Inquire now

How to use Inquiry Cart?

1.Go to “Product Specification” page;

2.Choose Art. No., Qty., add them into Inquiry Cart by clicking “Add to cart” button;

3.Continue to add products by same way, click “Inquiry Cart” button on the top right, and click “Submit” button.

- +

Add to cart

Product Specification

RODUCT DESCRIPTION

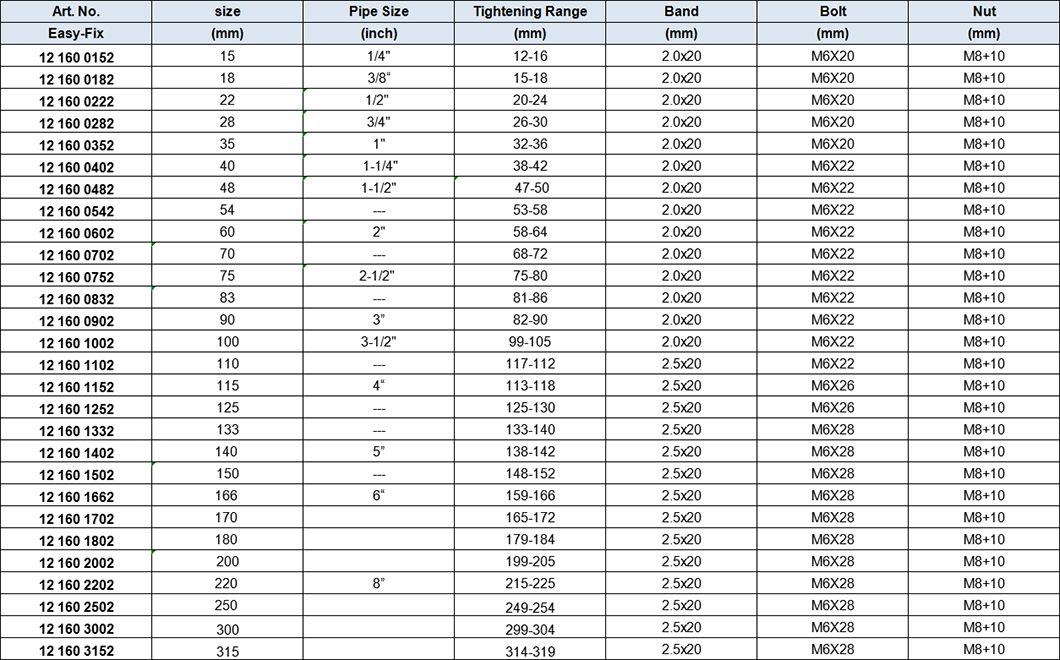

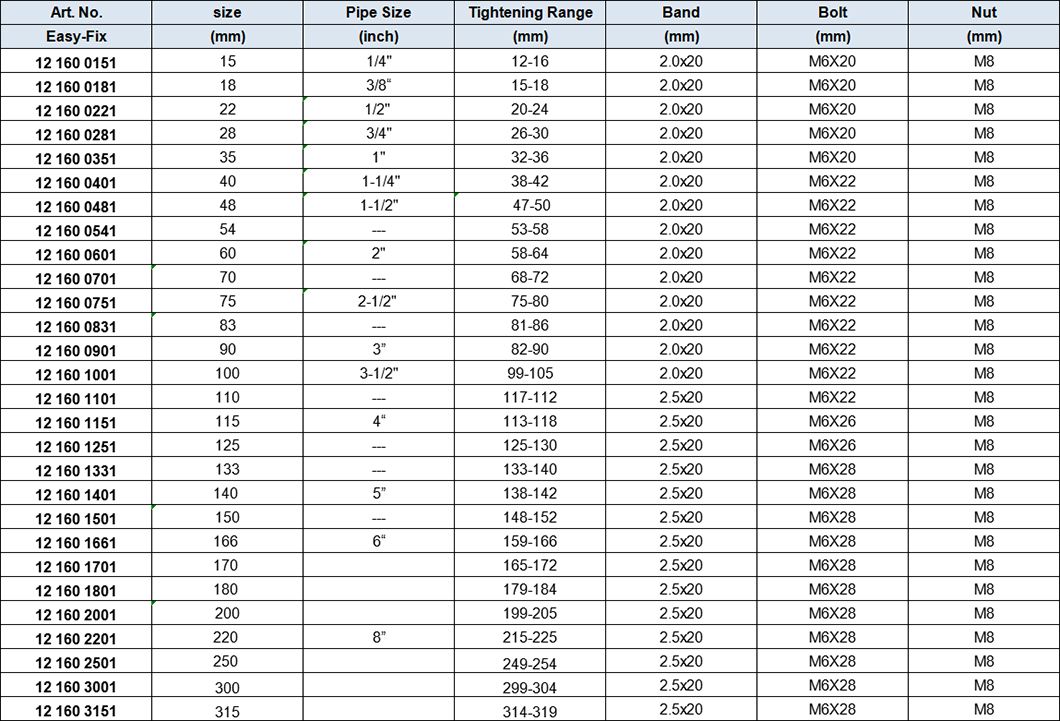

Art. No.	Art. No.	Size	Pipe Size	Tightening	Band	Bolt
Easy-Fix	Easy-Fix	(mm)	(inch)	Range(mm)	(mm)	(mm)
M8 Nut	M8+10 Nut
12 160 0151	12 160 0152	12(15)	1/4"	12-15	2.0x20	M6X20
12 160 0181	12 160 0182	18	3/8“	15-19	2.0x20	M6X20
12 160 0221	12 160 0222	22	1/2"	20-24	2.0x20	M6X20
12 160 0281	12 160 0282	28	3/4"	25-28	2.0x20	M6X20
12 160 0341	12 160 0342	34	1"	32-36	2.0x20	M6X20
12 160 0401	12 160 0402	40	1-1/4"	38-42	2.0x20	M6X20
12 160 0481	12 160 0482	48	1-1/2"	47-50	2.0x20	M6X20
12 160 0521	12 160 0522	52	---	52-57	2.0x20	M6X20
12 160 0541	12 160 0542	54	---	53-58	2.0x20	M6X20
12 160 0601	12 160 0602	60	2"	58-64	2.0x20	M6X20
12 160 0631	12 160 0632	63	---	60-66	2.0x20	M6X20
12 160 0701	12 160 0702	70	---	68-72	2.0x20	M6X20
12 160 0751	12 160 0752	75	2-1/2"	75-80	2.0x20	M6X20
12 160 0831	12 160 0832	83	---	81-86	2.0x20	M6X20
12 160 0901	12 160 0902	90	3”	82-90	2.0x20	M6X20
12 160 1001	12 160 1002	100	3-1/2"	99-105	2.0x20	M6X20
12 160 1101	12 160 1102	110	---	107-112	2.0x20	M6X25
12 160 1151	12 160 1152	115	4“	113-118	2.0x20	M6X25
12 160 1251	12 160 1252	125	---	125-130	2.0x20	M6X25
12 160 1291	12 160 1292	129	---	125-130	2.0x20	M6X25
12 160 1331	12 160 1332	133	---	133-140	2.0x20	M6X25
12 160 1401	12 160 1402	140	5”	138-142	2.0x20	M6X25
12 160 1501	12 160 1502	150	---	148-152	2.0x20	M6X25
12 160 1541	12 160 1542	154	---	150-156	2.0x20	M6X25
12 160 1661	12 160 1662	166	6“	159-166	2.0x20	M6X25
12 160 1681	12 160 1682	168	---	165-172	2.0x20	M6X25
12 160 1701	12 160 1702	170	---	165-172	2.0x20	M6X25
12 160 1801	12 160 1802	180	---	179-184	2.0x20	M6X25
12 160 2001	12 160 2002	200	8”	199-205	2.0x20	M6X25
12 160 2201	12 160 2202	220	-	215-225	2.0x20	M6X25
12 160 2501	12 160 2502	250	10"	249-254	2.0x20	M6X25
12 160 2731	12 160 2732	273	---	268-274	2.0x20	M6X25
12 160 3001	12 160 3002	300	---	299-304	2.0x20	M6X25
12 160 3051	12 160 3052	305	---	300-307	2.0x20	M6X25
12 160 3151	12 160 3152	315	---	314-319	2.0x20	M6X25
12 160 3201	12 160 3202	320	---	313-323	2.0x20	M6X25

12 160 1103	12 160 1104	110	---	107-112	2.5x20	M6X25
12 160 1153	12 160 1154	115	4“	113-118	2.5x20	M6X25
12 160 1253	12 160 1254	125	---	125-130	2.5x20	M6X25
12 160 1333	12 160 1334	133	---	133-140	2.5x20	M6X25
12 160 1403	12 160 1404	140	5”	138-142	2.5x20	M6X25
12 160 1503	12 160 1504	150	---	148-152	2.5x20	M6X25
12 160 1663	12 160 1664	166	6“	159-166	2.5x20	M6X25
12 160 1683	12 160 1684	168	6“	165-172	2.5x20	M6X25
12 160 1703	12 160 1704	170	---	168-172	2.5x20	M6X25
12 160 1803	12 160 1804	180	---	179-184	2.5x20	M6X25
12 160 2003	12 160 2004	200	8”	199-205	2.5x20	M6X25
12 160 2203	12 160 2204	220	---	215-225	2.5x20	M6X25
12 160 2503	12 160 2504	250	10"	249-254	2.5x20	M6X25
12 160 2733	12 160 2734	273	---	268-274	2.5x20	M6X25
12 160 3003	12 160 3004	300	---	299-304	2.5x20	M6X25
12 160 3153	12 160 3154	315	---	314-319	2.5x20	M6X25
12 160 3203	12 160 3204	320	---	313-323	2.5x20	M6X25

12 160 2005	12 160 2006	200	8"	199-205	2.0x28	M6X25
12 160 2505	12 160 2506	250	10"	249-254	2.0x28	M6X25
12 160 2735	12 160 2736	273	---	268-274	2.0x28	M6X25
12 160 3005	12 160 3006	300	---	299-304	2.0x28	M6X25
12 160 3155	12 160 3156	315	---	314-319	2.0x28	M6X25
12 160 3205	12 160 3206	320	---	313-323	2.0x28	M6X25
12 160 3565	12 160 3566	356	---	356	2.0x28	M6X25
12 160 4065	12 160 4066	406	---	406	2.0x28	M6X25
12 160 4575	12 160 4576	457	---	457	2.0x28	M6X25
12 160 5085	12 160 5086	508	---	508	2.0x28	M6X25
