Heavy Duty Pipe Clamps w.EPDM Rubber, 2 Sides Fixing, Blue White Zinc-plated

Basic Info:

Model NO: 12 003 xxx

Share to :

Inquire now

How to use Inquiry Cart?

1.Go to “Product Specification” page;

2.Choose Art. No., Qty., add them into Inquiry Cart by clicking “Add to cart” button;

3.Continue to add products by same way, click “Inquiry Cart” button on the top right, and click “Submit” button.

- +

Add to cart

Product Specification

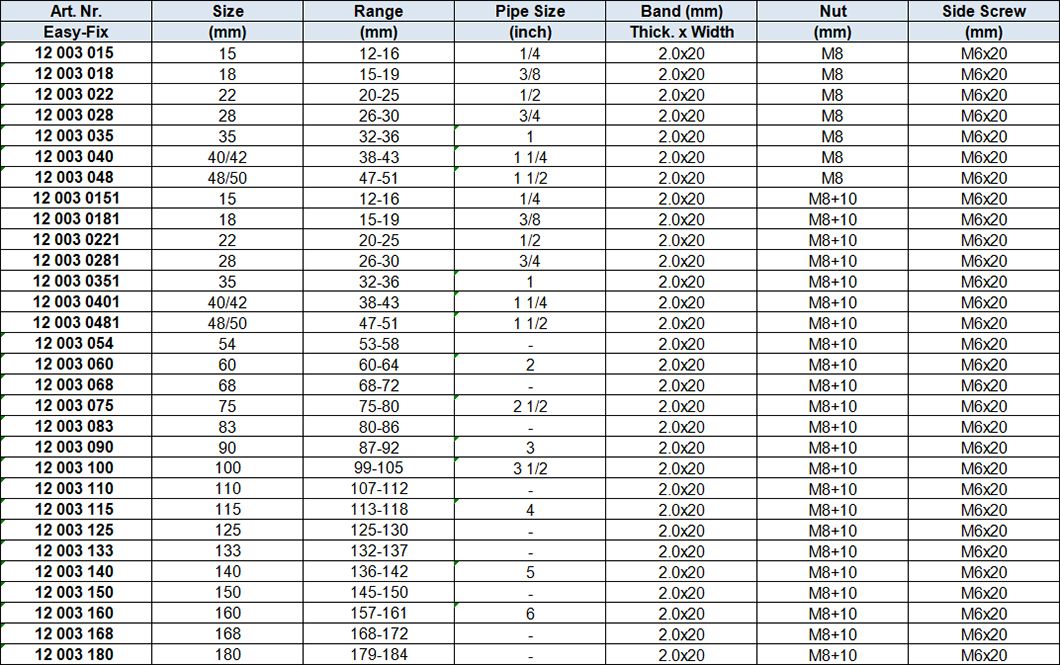

PRODUCT DESCRIPTION

Art. Nr.	Size	Range	Pipe Size	Band	Nut
Easy-Fix	(mm)	(mm)	(inch)	(mm)	(mm)
12 003 015	15	12-16	1/4	2.0x20	M8
12 003 018	18	15-19	3/8	2.0x20	M8
12 003 022	22	20-25	1/2	2.0x20	M8
12 003 028	28	26-30	3/4	2.0x20	M8
12 003 035	35	32-36	1	2.0x20	M8
12 003 040	40/42	38-43	1 1/4	2.0x20	M8
12 003 048	48/50	47-51	1 1/2	2.0x20	M8
12 003 0151	15	12-16	1/4	2.0x20	M8+10
12 003 0181	18	15-19	3/8	2.0x20	M8+10
12 003 0221	22	20-25	1/2	2.0x20	M8+10
12 003 0281	28	26-30	3/4	2.0x20	M8+10
12 003 0351	35	32-36	1	2.0x20	M8+10
12 003 0401	40/42	38-43	1 1/4	2.0x20	M8+10
12 003 0481	48/50	47-51	1 1/2	2.0x20	M8+10
12 003 054	54	53-58	-	2.0x20	M8+10
12 003 060	60	60-64	2	2.0x20	M8+10
12 003 070	70	68-72	-	2.0x20	M8+10
12 003 075	75	75-80	2 1/2	2.0x20	M8+10
12 003 083	83	80-86	-	2.0x20	M8+10
12 003 090	90	87-92	3	2.0x20	M8+10
12 003 100	100	99-105	3 1/2	2.0x20	M8+10
12 003 110	110	107-112	-	2.0x20	M8+10
12 003 115	115	113-118	4	2.0x20	M8+10
12 003 125	125	125-130	-	2.0x20	M8+10
12 003 133	133	132-137	-	2.0x20	M8+10
12 003 140	140	136-142	5	2.0x20	M8+10
12 003 150	150	138-152	-	2.0x20	M8+10
12 003 160	160	159-166	6	2.0x20	M8+10
12 003 168	168	168-172	-	2.0x20	M8+10
12 003 180	180	179-184	-	2.0x20	M8+10
12 003 200	200	200-212		2.0x20	M8+10

12 003 0152	15	12-16	1/4	1.7x18.5	M8
12 003 0182	18	15-19	3/8	1.7x18.5	M8
12 003 0222	22	20-25	1/2	1.7x18.5	M8
12 003 0282	28	26-30	3/4	1.7x18.5	M8
12 003 0352	35	32-36	1	1.7x18.5	M8
12 003 0402	40/42	38-43	1 1/4	1.7x18.5	M8
12 003 0482	48/50	47-51	1 1/2	1.7x18.5	M8
12 003 0153	15	12-16	1/4	1.7x18.5	M8+10
12 003 0183	18	15-19	3/8	1.7x18.5	M8+10
12 003 0223	22	20-25	1/2	1.7x18.5	M8+10
12 003 0283	28	26-30	3/4	1.7x18.5	M8+10
12 003 0353	35	32-36	1	1.7x18.5	M8+10
12 003 0403	40/42	38-43	1 1/4	1.7x18.5	M8+10
12 003 0483	48/50	47-51	1 1/2	1.7x18.5	M8+10
12 003 0542	54	53-58	-	1.7x18.5	M8+10
12 003 0602	60	60-64	2	1.7x18.5	M8+10
12 003 0682	70	68-72	-	1.7x18.5	M8+10
12 003 0752	75	75-80	2 1/2	1.7x18.5	M8+10
12 003 0832	83	80-86	-	1.7x18.5	M8+10
12 003 0902	90	87-92	3	1.7x18.5	M8+10
12 003 1002	100	99-105	3 1/2	1.7x18.5	M8+10
12 003 1102	110	107-112	-	1.7x18.5	M8+10
12 003 1152	115	113-118	4	1.7x18.5	M8+10
12 003 1252	125	125-130	-	1.7x18.5	M8+10
12 003 1332	133	132-137	-	1.7x18.5	M8+10
12 003 1402	140	136-142	5	1.7x18.5	M8+10
12 003 1502	150	145-150	-	1.7x18.5	M8+10
12 003 1602	160	159-166	6	1.7x18.5	M8+10
12 003 1682	168	168-172	-	1.7x18.5	M8+10
12 003 1802	180	179-184	-	1.7x18.5	M8+10
12 003 2002	200	200-212	8	1.7x18.5	M8+10
12 003 2003	200	200-212	8	2.2x18.5	M8+10
12 003 2202	220	215-226		1.7x18.5	M8+10
12 003 2502	250	248-252		2.2x18.5	M8+10
12 003 3002	300	298-305		1.7x18.5	M8+10
12 003 3152	315	312-318		1.7x18.5	M8+10
